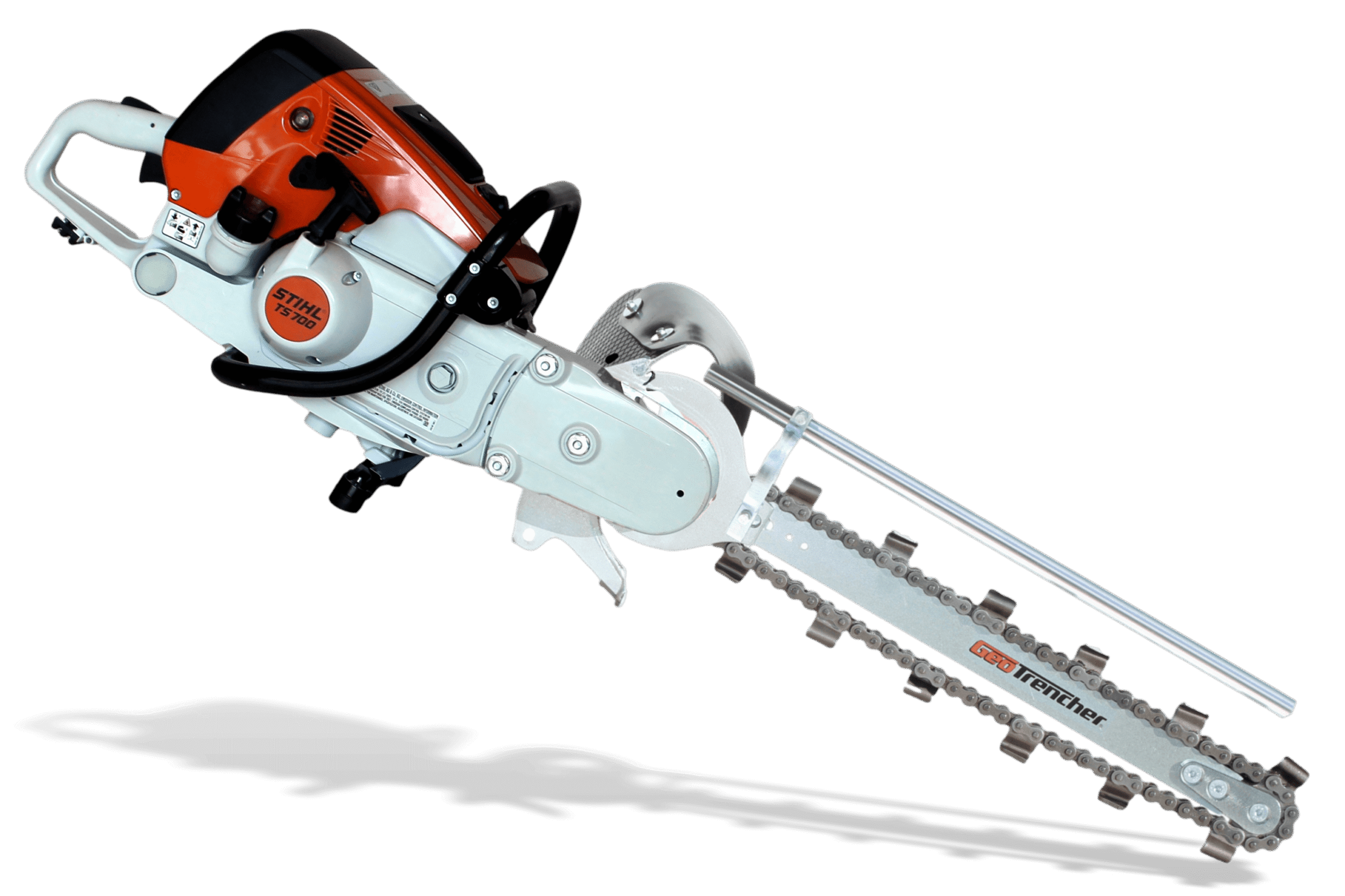

GeoTrencher – 500mm Mini Trencher – STIHL TS700

Stihl TS700 with 500mm GeoTrencher – Unleashing Power and Versatility

Elevate your trenching game with the formidable Stihl TS700 paired with the efficiency of the 500mm GeoTrencher. As the most powerful model in the STIHL range, this dynamic duo is engineered to tackle the toughest jobs with unparalleled precision.

Key Features:

  1. High-Speed Engine: The TS700 boasts a high-speed engine, ensuring optimal performance even in demanding conditions.
  2. Large Fuel Tank: Equipped with a capacious fuel tank, this powerhouse minimizes downtime by extending operational hours.
  3. Premium Filter System: The built-in premium filter system enhances durability and efficiency, making the TS700 a reliable companion for challenging tasks.
  4. ElastoStart Technology: STIHL’s ElastoStart technology, coupled with a decompression valve, guarantees hassle-free and smooth starts, promoting user convenience.

Versatile Usage:

The TS700 can be wielded hand-held for precision or seamlessly integrated with the GeoCart for enhanced stability and control. This adaptability makes it a versatile tool for various trenching applications.

Experience the epitome of power, reliability, and flexibility with the Stihl TS700 and 500mm GeoTrencher combo – a dynamic duo ready to redefine your trenching experience.



The GeoTrencher with Stihl TS 700 Powerhead emerges as the most robust model within the STIHL range, designed to tackle the toughest jobs with ease. Its high-speed engine, substantial fuel tank, and premium filter system ensure superior performance. With features like STIHL ElastoStart and a decompression valve, starting becomes effortlessly smooth. Whether handheld or used with the GeoCart, the TS 700 delivers exceptional power.

Technical Specifications:

  • Total Weight:
    • With 500mm Bar: 17.0 kg
    • With 700mm Bar: 18.5 kg
  • Engine Type: 2-Stroke
  • Max. Power at Operating Speed: 5.0kW at 9,300rpm
  • Bore: 56mm
  • Stroke: 40mm
  • Displacement: 98.5cc
  • Idling Speed: 2,700 rpm
  • Max. Spindle Speed: 5,080 rpm
  • Fuel Type: Mix Unleaded + 2-Stroke oil
    • Mixture Ratio: 50:1
  • Noise Levels:
    • Sound Pressure Level: 100dbA
    • Sound Power Level (Kwa=2): 109dbA
  • Vibration Acceleration:
    • Rear Handle Bench Tested (K=2): 7.5m/s
    • Tubular Handle Bench Tested (K=2): 8.6m/s
    • Field Tested Handheld (K=2): 28.43m/s
    • Field Tested EZ Kart Handle (K=2): 5.93m/s
  • Fuel Tank Capacity: 1.2L
  • Drive Belt Part Number: 9490-000-7920
  • Spark Plug and Gap: NGK BPMR 7A / 0.5mm
  • Chain Speed at Max. Spindle Rotation: 10.2m/s
  • Chain Break-Out Force: 6.57 kN

Specifications are subject to change without notice.
